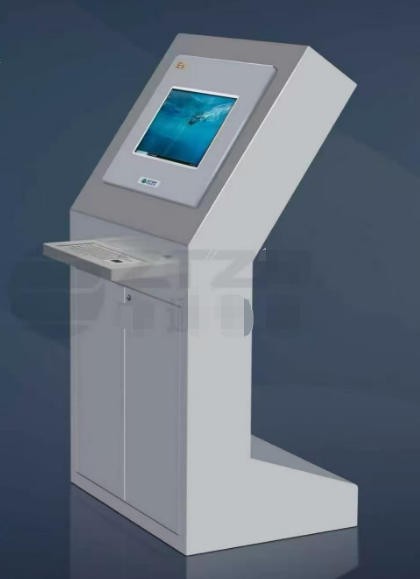

OEM ODM EX certified fire explosive proof touch screen monitor HMI kiosk

main model

Screen Type

screen size

resolution

brightness

backlight

Backlight lifespan

Touch screen

Operation method

CPU

Memory

Memory

BTM-2

(10.1")

10.1"1024*768

BTM-2

(11.6")

11.6"

1920*1080

BTM-2

(12")

BTM-2

(15")

BTM-2

(17")

TFT LED

12.1"

15"

seventeen

1024*7681920*1080

1280*1024

BTM-2

BTM-21.5

(19")

19"

1920*1080

(21")

21.5"

1920*1080

Standard: >300 cd/m², High Brightness: >400 cd/m² (Customizable)

LED

50,000 hours

Four-wire resistive touch screen (optional)

Explosion-proof keyboard and mouse (optional)

Onboard Intel Celeron I5/17

8th generation, 10th generation, 13th generation

Standard configuration with 8GB, optional 16GB

Standard configuration includes a 256GB SSD, with optional 512GB/1TB SSD upgrades available

BTM-22

(22")

22"

1920*1080

Ethernet: 10/100/1000 Mbps Ethernet RJ45

external interface

Serial port: RS485/RS422/RS232

USB: USB Device 2.0/USB Device 3.0

Others: Aviation connectors, Phoenix terminals (customizable)

operating system

Working temperature Storage temperature

Environmental humidity

Voltage marking

rated power

electrical interface

Installation Method

Supports Win10/Win11

Normal temperature: 0~50°C, low temperature: -20~60°C, wide temperature: -40~60°C

Storage temperature: -10 to 60°C / -40 to 70°C

10~90% RH (no condensation)

AC 220V or DC 12V/DC 24V

20W Max 50W (Wide Temperature High Brightness 100~150W)

M20, G3/4

Embedded, desktop floor-standing, column-mounted
