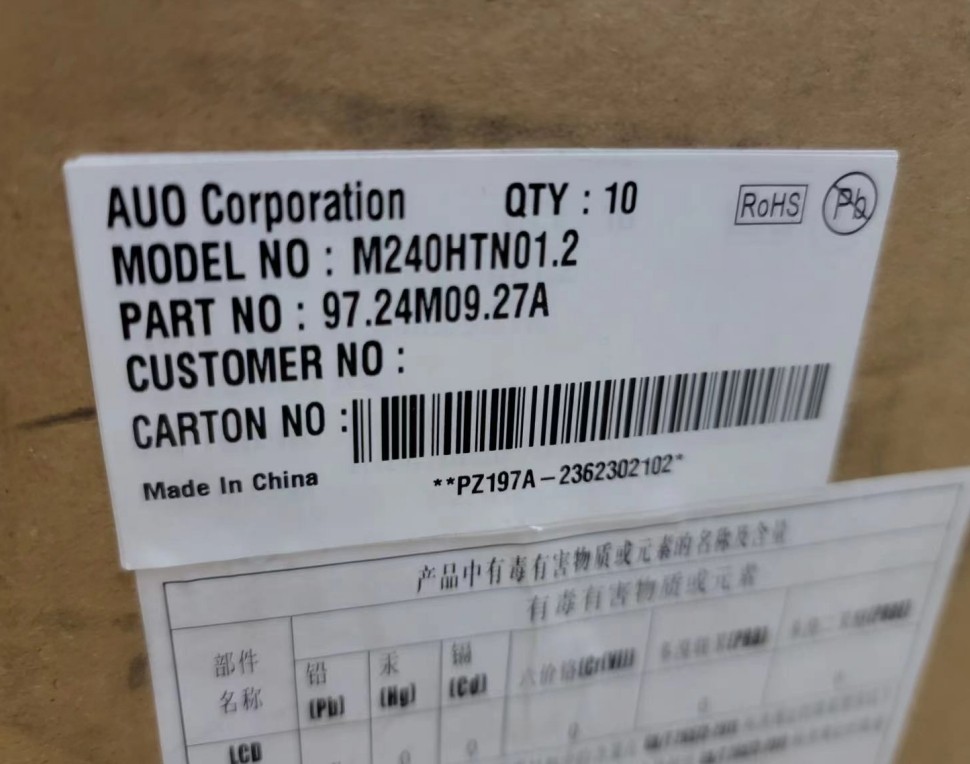

AUO M240HTN01.2 24 inch TFT-LCD display panel

Brand

AUO

Model P/N

M240HTN01.2

Diagonal Size

24.0"

Panel Type

a-Si TFT-LCD, LCM

Resolution

1920(RGB)×1080, FHD  91PPI

Pixel Format

RGB Vertical Stripe

Active Area

531.36(W)×298.89(H) mm

Bezel Opening

535.4(W)×303.0(H) mm

Outline Dim.

556(H)×323.2(V) ×12(D) mm

Treatment

Antiglare (Haze 25%), Hard coating (3H)

Luminance

250 cd/m² (Typ.)

Contrast Ratio

1000:1 (Typ.) (TM)

View Direction

6 o'clock

Response Time

3.5/1.5 (Typ.)(Tr/Td)

Viewing Angle

85/85/80/80 (Typ.)(CR≥10)

Operating Mode

TN, Normally White, Transmissive

Support Color

16.7M   72% NTSC

Light Source

WLED  [9S4P] , 30K hours , W/O Driver

Weight

1.89±0.08Kgs

Designed For

Frame Rate

60Hz

Touch Panel

Without

Interface Type

LVDS (2 ch, 8-bit) , 30 pins Connector

Power Supply

5.0V (Typ.)

Environment

Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
