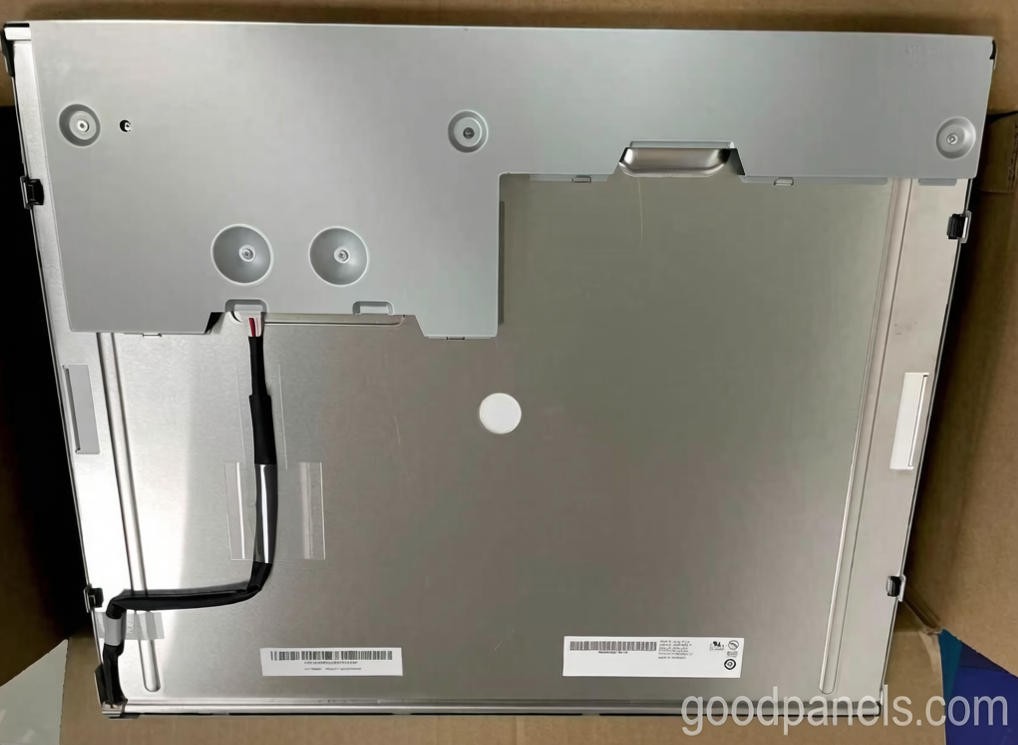

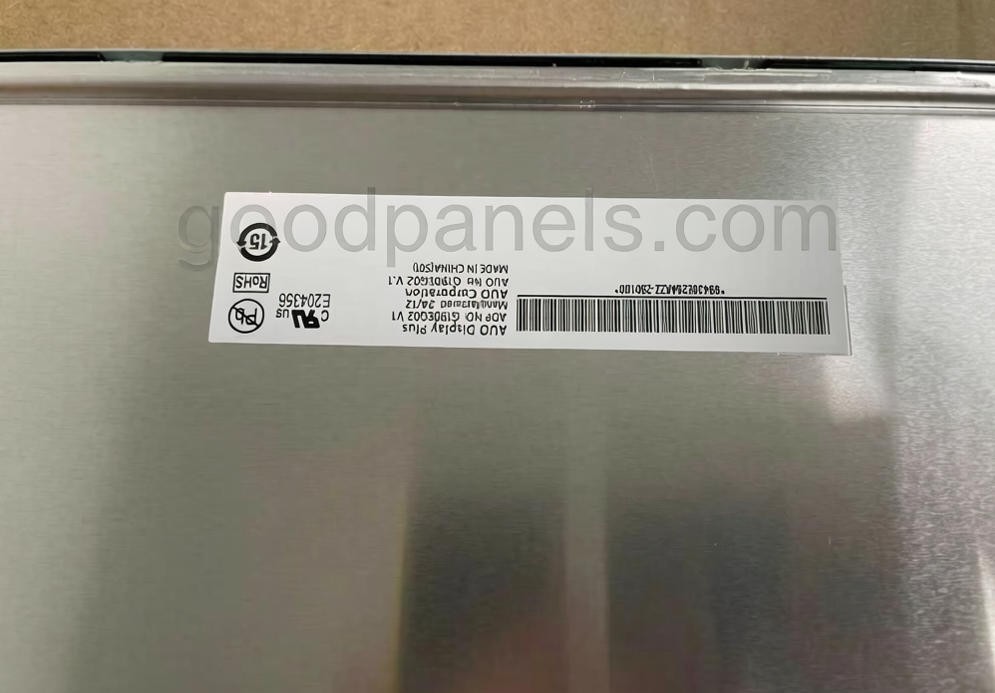

brand new AUO G190EG02 V1 tft lcd display panel LCM

Panel brand

Panel Size

pixel count

display area

Panel weight

Panel brightness

viewing angle

View direction

display color

operating frequency

power consumption

AUO (AUO)

19.0 inches

1280(RGB)×1024, SXGA, 5:4

376.32(H)×301.056(V) mm

1.75Kgs (Typ.)

300 cd/m² (Typ.)

89/89/89/89 (Typ.) (CR≥10) Left/Right/Up/Down

full perspective

16.7M, 70% NTSC

60Hz

30.6W (Typ.)

Panel Model

Panel Type

Pixel layout

Overall Dimensions

Surface treatment

contrast

Work Mode

reaction time

Panel application

touch screen

Light tube type

G190EG02 V1

a-Si TFT-LCD, liquid crystal module

RGB vertical bar

396(H)×324(V)×18.9(D) mm

matte

2000:1 (Typ.) (Transmit)

MVA, Normally Black Display, Transmissive [Screen Library Copyright, Strictly Prohibited from Plagiarism]

IPS Hard Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich

VA Soft Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA

15/5 (Typ.)(Tr/Td) ms

Industrial Medical Imaging

Touchless

WLED, 50K hours, includes LED driver

signal interface

Driving voltage

Working Environment

LVDS (2 channels, 8-bit), 30 pins, 1.0 mm, terminal

5.0V (Typ.)

Operating temperature: 0 ~ 60 °C, Storage temperature: -20 ~ 60 °C
