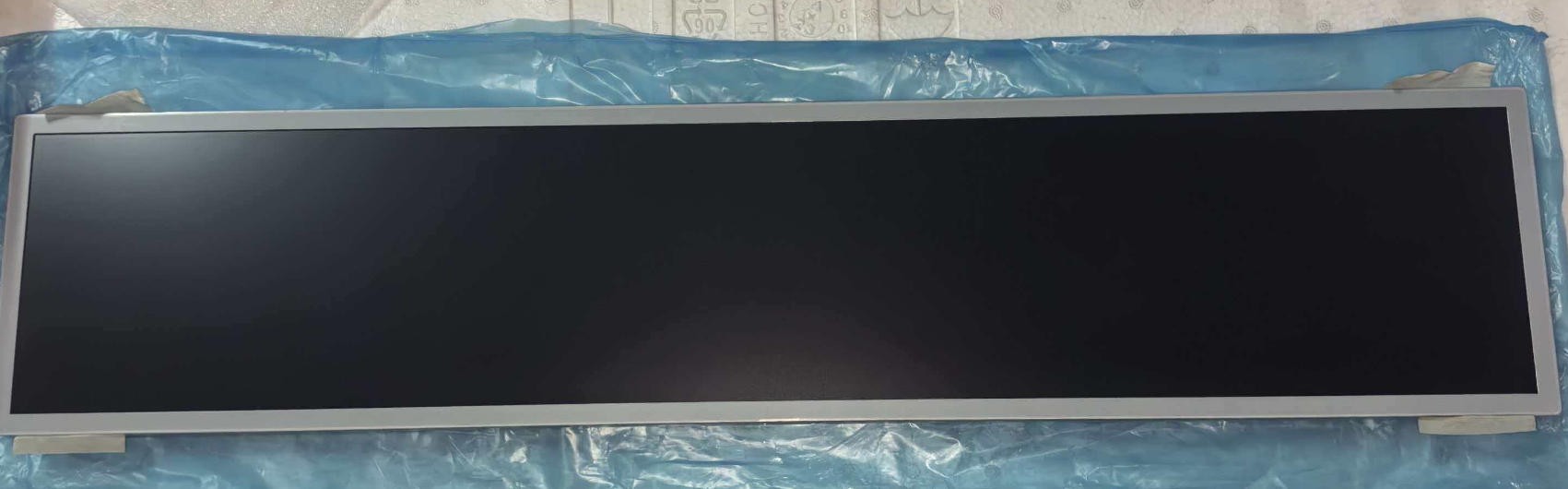

P280IVN01.0 AUO LCD bar type TFT-LCD display panel

Panel brand AUO Panel model P280IVN01.0

Panel size: 28.0 inches

Panel type: a-Si TFT-LCD, liquid crystal module

Resolution: 1920(RGB)×360 69PPI Pixel arrangement: RGB Vertical stripe

Display area: 698.4(W) × 130.95(H) mm

Visible area: 702.4(W) × 134.95(H) mm

External dimensions: 722.2(W) × 154.75(H) × 28.9(D) mm

Surface treatment: Matte (Haze 2%), Hard coating (3H)

Brightness: 700 cd/m² (Typ.)

Contrast Ratio 4000:1 (Typ.) [Transmissive]

Optical mode AMVA3, normally black display, transmissive

Viewing angles: 89/89/89/89 (Typ.) (CR≥10)

Response time 8 (Typ.)(G to G) ms

Color count: 16.7M, 72% NTSC

Backlight type: WLED, 70K hours, includes LED driver

Weight: 2.40 Kgs (Typ.)
