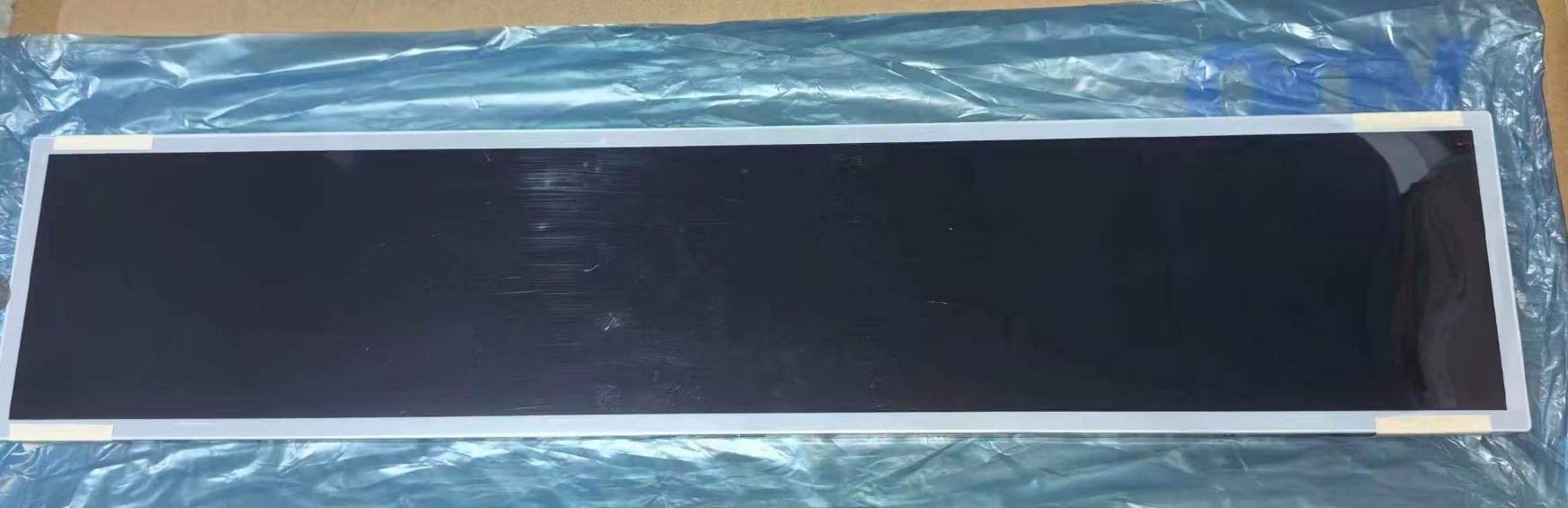

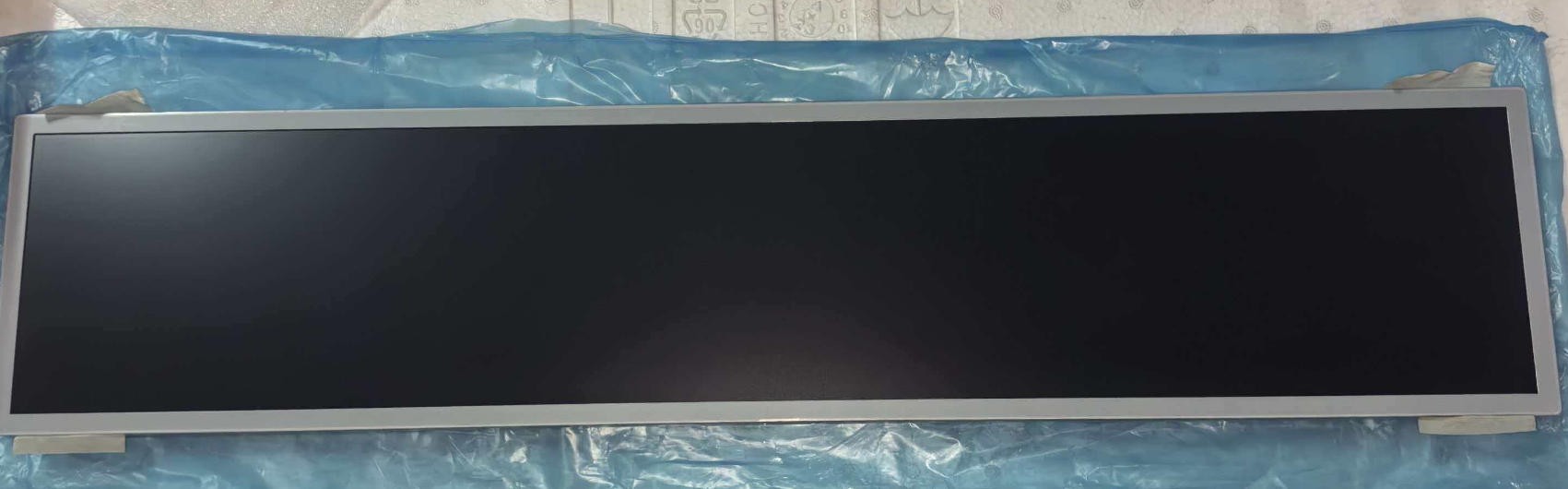

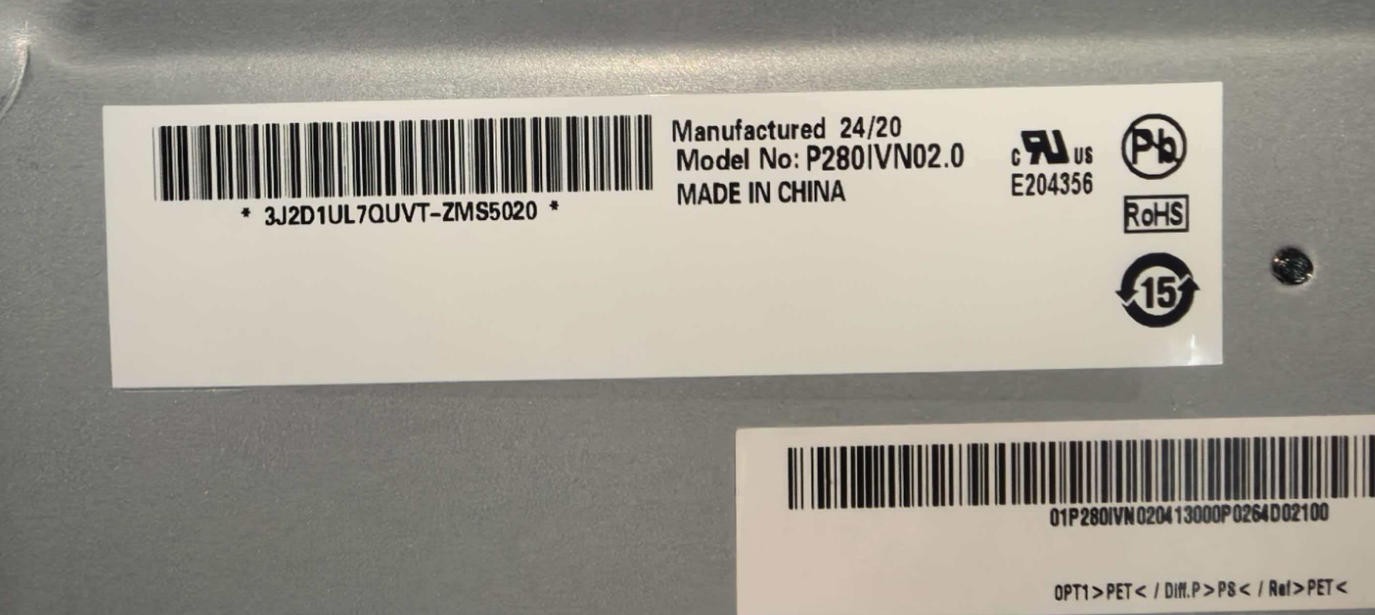

P280IVN02.0 AUO LCD bar type TFT-LCD display panel - 副本

Pixel Characteristics: Resolution 1920 (RGB) × 360, Pixel Pitch (mm) 0.12125 × 0.36375 (H × V), Pixel Arrangement RGB Vertical Stripe [Screen Library Copyright, Prohibited from Plagiarism]

LCR Vertical Stripe: Left, Center, Right Vertical Stripe

Rectangle: Square

RGB Delta: Red, Green, Blue Triangle

RGB Horizontal Stripe: Red, Green, Blue Horizontal Stripe

RGB Vertical Stripe: Red, Green, Blue Vertical Stripe

RGBW Rectangle: Red, Green, Blue, White Square

RG/BW PenTile: (Red, Green) (Blue, White) Vertical Stripe

RG/BG PenTile: (Red, Green) (Blue, Green) Vertical Stripe

RGBY Vertical Stripe: Red, Green, Blue, Yellow Vertical Stripe, Pixel Pitch (mm) 0.36375 × 0.36375 (H × V) [69 PPI]

Structural dimensions: Display area (mm) 698.4 (H) × 130.95 (V) Open area (mm) 702.4 (H) × 134.95 (V) External dimensions (mm) 722.2 (H) × 154.75 (V) External thickness (mm) 16.8/28.9 (Typ./Max.)

Appearance Features: Physical Shape Flat Rectangular Appearance Style - Aspect Ratio > 3:1 (H:V) Landscape / Portrait Mode

Installation method: Side mounting holes (10-M3) on the left, right, upper, and lower bezel

Other parameters: Weight 2.40Kgs (Typ.), Surface treatment: Matte (Haze 28%), Hard coating (3H)

Basic Information:

Display Brightness: 1500 cd/m² (Typ.)

Contrast Ratio: 5000:1 (Typ.) (Transmissive)

Viewing Angle: Left/Right/Up/Down 89/89/89/89 (Typ.) (CR≥10)

Display Mode: AMVA3, Normally Black Display, Transmissive

Recommended Viewing Angle: Full View

Response Time: 8 (Typ.) (G to G) ms

Color Performance: White Coordinates Wx: 0.313; Wy: 0.329  Supported Colors: 16.7M (8-bit)  Color Temperature: 6485K  Brightness Uniformity: 1.33 (Max.) (9 points)  Brightness Uniformity = Max. / Min

1931 Color Gamut: NTSC Ratio 72%, sRGB Coverage 95%, Adobe RGB Coverage 73%, DCI-P3 Coverage 75%, Rec.2020 Coverage 54%, Low Blue Light Eye Protection

Display Performance: Outdoor Visibility is Transmittance-
